Description:

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>
struct alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::Node

This is the "final" internal node type, just adds a field of template type T to its base class.

Objects of this type cannot be received directly, and all interfaces are available via public type Cursor only, which holds a pointer to an object of this class.

Definition at line 366 of file stringtreebase.inl.

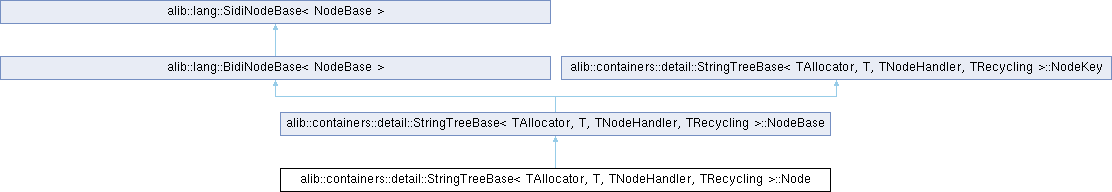

Inheritance diagram for alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::Node:

Public Field Index:
T	data
	The templated custom data object stored with each node.
Public Field Index: inherited from alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase
NodeList	children
	The hook to the doubly linked list of children.
uinteger	qtyChildren
	The number of children currently stored in this node.
Public Field Index: inherited from alib::lang::BidiNodeBase< NodeBase >
NodeBase *	p
Public Field Index: inherited from alib::lang::SidiNodeBase< NodeBase >
NodeBase *	n
Public Field Index: inherited from alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeKey
NodeNameUnion	name
NodeBase *	parent

Public Method Index:
	Node (const Node &)=delete
	Deleted copy constructor.
template<typename... TArgs>
	Node (const NodeKey &pKey, TArgs &&... args)
	Node (Node &&)=delete
	Deleted move constructor.
template<typename... TArgs>
	Node (NodeBase *pParent, const NameType &pName, TArgs &&... args)
Public Method Index: inherited from alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase
	NodeBase (const NodeKey &pKey)
	NodeBase (NodeBase *pParent, const NameType &pName)
strings::TAString< CharacterType, lang::HeapAllocator > &	assemblePath (strings::TAString< CharacterType, lang::HeapAllocator > &target, const NodeBase childNode, const NodeBase maxParent, CharacterType separatorChar) const
uinteger	deleteChild (StringTreeBase tree, NodeBase child)
uinteger	deleteChildren (StringTreeBase *tree)
int	depth () const
int	distance (const NodeBase *other) const
NodeBase *	findChild (StringTreeBase *tree, const NameType &childName)
template<typename... TArgs>
std::pair< NodeBase *, bool >	findOrCreateChild (StringTreeBase *tree, const NameType &childName, TArgs &&... args)
bool	isRoot () const
Public Method Index: inherited from alib::lang::BidiNodeBase< NodeBase >
	BidiNodeBase () noexcept=default
	Default constructor. (Does not initialize the pointer!).
void	addBefore (NodeBase *elem) noexcept
void	addBehind (NodeBase *elem) noexcept
BidiNodeBase &	operator= (const BidiNodeBase &)=delete
NodeBase *	prev () const noexcept
void	remove () noexcept
	Unhooks this node from a list.
Public Method Index: inherited from alib::lang::SidiNodeBase< NodeBase >
	SidiNodeBase () noexcept=default
	Default constructor. (Does not initialize the pointer.).
NodeBase *	addBehind (NodeBase *elem) noexcept
integer	count (SidiNodeBase *end=nullptr) const noexcept
bool	hasNext () const
void	next (SidiNodeBase *p)
SidiNodeBase &	operator= (const SidiNodeBase &)=delete
bool	pointsTo (const SidiNodeBase *elem) const
NodeBase *	removeNext () noexcept
NodeBase *	removeRangeBehind (NodeBase *last) noexcept
Public Method Index: inherited from alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeKey
	NodeKey (NodeBase *pParent, const NameType &pName)

Additional Inherited Members
Public Type Index: inherited from alib::lang::BidiNodeBase< NodeBase >
using	FWDNode
	Alias name for an instantiation of the base template.

Field Details:

◆ data

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

T alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::Node::data

The templated custom data object stored with each node.

Definition at line 369 of file stringtreebase.inl.

Constructor(s) / Destructor Details:

◆ Node() [1/2]

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

template<typename... TArgs>

alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::Node::Node	(	const NodeKey &	pKey,
		TArgs &&...	args )

inline

Constructor. Custom data is default-initialized.

Template Parameters

TArgs Types of variadic parameters given with parameter args.

Parameters

pKey	The key portion of the node.
args	Variadic parameters. Forwarded to the constructor of custom type T.

Definition at line 382 of file stringtreebase.inl.

◆ Node() [2/2]

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

template<typename... TArgs>

alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::Node::Node	(	NodeBase *	pParent,
		const NameType &	pName,
		TArgs &&...	args )

inline

Constructor. Custom data is default-initialized.

Template Parameters

TArgs Types of variadic parameters given with parameter args.

Parameters

pParent	Parent node to search a child for.
pName	Child name to search
args	Variadic parameters. Forwarded to the constructor of custom type T.

Definition at line 392 of file stringtreebase.inl.

The documentation for this struct was generated from the following file:

stringtreebase.inl
