alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase Struct Reference

Description:

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>
struct alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase

This is the base class of the internal node type Node. This type implements functionality needed. Derived type Node then only adds the custom value T.

Objects of this type cannot be received directly and all interface is available via public type Cursor only, which holds a pointer to an object of this class.

Definition at line 139 of file stringtreebase.inl.

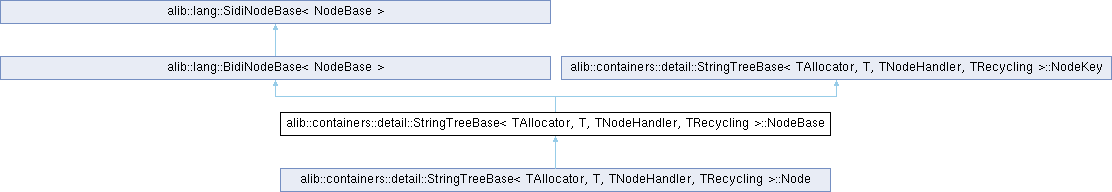

Inheritance diagram for alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase:

Public Field Index:
NodeList	children
	The hook to the doubly linked list of children.
uinteger	qtyChildren
	The number of children currently stored in this node.
Public Field Index: inherited from alib::lang::BidiNodeBase< NodeBase >
NodeBase *	p
Public Field Index: inherited from alib::lang::SidiNodeBase< NodeBase >
NodeBase *	n
Public Field Index: inherited from alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeKey
NodeNameUnion	name
NodeBase *	parent

Public Method Index:
	NodeBase (const NodeKey &pKey)
	NodeBase (NodeBase *pParent, const NameType &pName)
strings::TAString< CharacterType, lang::HeapAllocator > &	assemblePath (strings::TAString< CharacterType, lang::HeapAllocator > &target, const NodeBase *childNode, const NodeBase *maxParent, CharacterType separatorChar) const
uinteger	deleteChild (StringTreeBase *tree, NodeBase *child)
uinteger	deleteChildren (StringTreeBase *tree)
int	depth () const
int	distance (const NodeBase *other) const
NodeBase *	findChild (StringTreeBase *tree, const NameType &childName)
template<typename... TArgs>
std::pair< NodeBase *, bool >	findOrCreateChild (StringTreeBase *tree, const NameType &childName, TArgs &&... args)
bool	isRoot () const
Public Method Index: inherited from alib::lang::BidiNodeBase< NodeBase >
	BidiNodeBase () noexcept=default
	Default constructor. (Does not initialize the pointer!).
void	addBefore (NodeBase *elem) noexcept
void	addBehind (NodeBase *elem) noexcept
BidiNodeBase &	operator= (const BidiNodeBase &)=delete
NodeBase *	prev () const noexcept
void	remove () noexcept
	Unhooks this node from a list.
Public Method Index: inherited from alib::lang::SidiNodeBase< NodeBase >
	SidiNodeBase () noexcept=default
	Default constructor. (Does not initialize the pointer.).
NodeBase *	addBehind (NodeBase *elem) noexcept
integer	count (SidiNodeBase *end=nullptr) const noexcept
bool	hasNext () const
void	next (SidiNodeBase *p)
SidiNodeBase &	operator= (const SidiNodeBase &)=delete
bool	pointsTo (const SidiNodeBase *elem) const
NodeBase *	removeNext () noexcept
NodeBase *	removeRangeBehind (NodeBase *last) noexcept
Public Method Index: inherited from alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeKey
	NodeKey (NodeBase *pParent, const NameType &pName)

Additional Inherited Members
Public Type Index: inherited from alib::lang::BidiNodeBase< NodeBase >
using	FWDNode
	Alias name for an instantiation of the base template.

Field Details:

children

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

NodeList alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::children

The hook to the doubly linked list of children.

Definition at line 146 of file stringtreebase.inl.

qtyChildren

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

uinteger alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::qtyChildren

The number of children currently stored in this node.

Definition at line 143 of file stringtreebase.inl.

Constructor(s) / Destructor Details:

NodeBase() [1/2]

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::NodeBase ( const NodeKey & pKey )

inline

Constructor.

Parameters

pKey	The key portion of the node.

Definition at line 150 of file stringtreebase.inl.

NodeBase() [2/2]

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::NodeBase ( NodeBase * pParent, const NameType & pName )

inline

Constructor. Custom data is default-initialized.

Parameters

pParent	Parent node to search a child for.
pName	Child name to search

Definition at line 157 of file stringtreebase.inl.

Method Details:

assemblePath()

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

strings::TAString< CharacterType, lang::HeapAllocator > & alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::assemblePath ( strings::TAString< CharacterType, lang::HeapAllocator > & target, const NodeBase * childNode, const NodeBase * maxParent, CharacterType separatorChar ) const

inline

Implementation of AssemblePath.

Parameters

target	The target to append the path to.
childNode	The (current) child node.
maxParent	The last parent node to travel up to. The root node is designated by nullptr.
separatorChar	The separator character as defined with the template parameter of class StringTree.

Returns

The given AString to allow concatenated operations on it.

Definition at line 315 of file stringtreebase.inl.

deleteChild()

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

uinteger alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::deleteChild ( StringTreeBase * tree, NodeBase * child )

inline

Deletes a given child node.

Note

If the given node is not a child of this node, the behavior is undefined. With debug-builds, in this case an ALib Assertion is raised.

Parameters

tree	The tree this node belongs to.
child	A pointer to a child of this node that is to be deleted.

Returns

The total number of nodes deleted.

Definition at line 265 of file stringtreebase.inl.

deleteChildren()

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

uinteger alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::deleteChildren ( StringTreeBase * tree )

inline

Deletes all child nodes.

Parameters

tree	The tree this node belongs to.

Returns

The number of children that were deleted.

Definition at line 284 of file stringtreebase.inl.

depth()

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

int alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::depth ( ) const

inline

Iterates over the parent nodes to the root node and returns this node's depth.

Returns

The depth of this node.

Definition at line 201 of file stringtreebase.inl.

distance()

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

int alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::distance ( const NodeBase * other ) const

inline

Iterates over the parent nodes and searches given other in the path.

Parameters

other

The node to calculate the distance to.

Returns

The distance of other to this node. 0 if the nodes are the same. -1 if other was not found.

Definition at line 216 of file stringtreebase.inl.

findChild()

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

NodeBase * alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::findChild ( StringTreeBase * tree, const NameType & childName )

inline

Searches a child with a given name. The name is not checked for ., .. or if separation characters.

Parameters

tree	The tree this node belongs to.
childName	The name of the child to search.

Returns

The child or nullptr if not found.

Definition at line 171 of file stringtreebase.inl.

findOrCreateChild()

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

template<typename... TArgs>

std::pair< NodeBase *, bool > alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::findOrCreateChild ( StringTreeBase * tree, const NameType & childName, TArgs &&... args )

inline

Searches a child with a given name, if not found, one is created. The name is not checked for ., .. or if separation characters.

Template Parameters

TArgs

Types of variadic parameters given with parameter args.

Parameters

tree	The tree this node belongs to.
childName	The name of the child to search.
args	Variadic parameters to be forwarded to the constructor of custom type T in the case a child is created.

Returns

A pair containing an iterator referencing either the element found or the new element added. The bool component is true if the insertion took place and false nothing was changed.

Definition at line 241 of file stringtreebase.inl.

isRoot()

template<typename TAllocator, typename T, typename TNodeHandler, Recycling TRecycling>

bool alib::containers::detail::StringTreeBase< TAllocator, T, TNodeHandler, TRecycling >::NodeBase::isRoot ( ) const

inline

Returns true if this is the root node, false otherwise.

Returns

true if this is the root node, false otherwise.

Definition at line 163 of file stringtreebase.inl.

---

The documentation for this struct was generated from the following file:

• stringtreebase.inl
