Description:

The Trigger class provides a mechanism to periodically "trigger" actions on objects that implement the Triggered interface without requiring dedicated threads per object or manual additions of actions in existing threads.

The class manages a collection of Triggered objects and ensures that their virtual trigger() methods are called periodically based on the time interval given with their respective method triggerPeriod().

Internally, Trigger operates its own thread to handle the timing and execution of the triggers, adhering to the specified conditions.

This design helps in simplifying periodic task management within an application, avoiding thread proliferation and minimizing resource overhead.

Key responsibilities of the class:

Maintain and manage a list of Triggered objects.
Schedule and execute periodic triggers for the registered objects.
Provide the ability to add or remove Triggered objects dynamically.

Usage:

Users register their implementations of the Triggered interface with the Add method to begin periodic triggers.
Objects can be unregistered using the Remove() method.
The Stop method terminates the execution of the internal thread.

Intended for scenarios where lightweight, periodic task scheduling is needed without creating additional complexity or significant overhead.

Definition at line 97 of file trigger.inl.

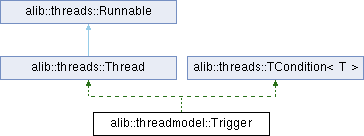

Inheritance diagram for alib::threadmodel::Trigger:

Inner Type Index:
struct	TriggerEntry
	The entry type used with field triggerList. More...

Public Method Index:
	Trigger ()
	Constructor.
virtual	~Trigger () override
	Destructor.
void	Add (Triggered &triggered, bool initialWakeup=false)
void	Do (Ticks until)
void	Do (Ticks::Duration until)
void	Remove (Triggered &triggered)
virtual void	Run () override
	Implementation of the parent interface (virtual abstract).
virtual void	Start ()
virtual void	Stop ()
	Stops the trigger thread and joins it.

Protected Field Index:
bool	internalThreadMode = false
	Denotes whether or not the trigger is currently used in internal thread mode.
ListMA< TriggerEntry >	triggerList
	The list of registered triggered objects.
bool	wakeUpCondition = false
Protected Field Index: inherited from alib::threads::Thread
std::thread *	c11Thread =nullptr
	The internal C++ thread object.
ThreadID	id =0
	The id of the thread.
const character *	name =nullptr
	The name of the thread.
std::thread::id	nativeID
	The internal C++ thread id.
Runnable *	runnable =nullptr
	The runnable to execute.
State	state = State::Unstarted
	Internal flag to indicate if the thread is alive.
Protected Field Index: inherited from alib::threads::TCondition< T >
std::condition_variable	conditionVariable
	The condition variable used for blocking and notification.
DbgConditionAsserter	Dbg
	The debug tool instance.
std::mutex	mutex
	The mutex used for locking this instance.

Protected Method Index:
bool	isConditionMet () const noexcept
Protected Method Index: inherited from alib::threads::Thread
void	destruct ()
	Thread (const character *pName=A_CHAR(""))
	Thread (const Thread &)=delete
	Deleted copy constructor.
	Thread (Runnable target, const character pName=A_CHAR(""))
virtual	~Thread () override
ThreadID	GetID () const
virtual const character *	GetName () const
std::thread::id	GetNativeID () const
State	GetState ()
bool	IsAlive ()
virtual void	Join ()
virtual void	SetName (const character *newName)
Protected Method Index: inherited from alib::threads::Runnable
virtual	~Runnable ()
	Virtual destructor.
Protected Method Index: inherited from alib::threads::TCondition< T >
	TCondition (const character *dbgName)
void	Acquire (ALIB_DBG_TAKE_CI)
T &	cast ()
void	Release (ALIB_DBG_TAKE_CI)
void	ReleaseAndNotify (ALIB_DBG_TAKE_CI)
void	ReleaseAndNotifyAll (ALIB_DBG_TAKE_CI)
void	WaitForNotification (ALIB_DBG_TAKE_CI)
void	WaitForNotification (const Ticks &wakeUpTime, const CallerInfo &ci)
void	WaitForNotification (const Ticks::Duration &maxWaitTimeSpan, const CallerInfo &ci)
void	WaitForNotification (const Ticks::Duration::TDuration &maxWaitTimeSpan, const CallerInfo &ci)

Additional Inherited Members
Protected Type Index: inherited from alib::threads::Thread
enum class	State { Unstarted = 0 , Started = 1 , Running = 2 , Done = 3 , Terminated = 4 }
Protected Static Method Index: inherited from alib::threads::Thread
static Thread *	Get (std::thread::id nativeID)
static Thread *	GetCurrent ()
static Thread *	GetMain ()
static void	Sleep (const Ticks::Duration &duration)
static void	Sleep (const Ticks::Duration::TDuration &duration)
static void	SleepMicros (int64_t microseconds)
static void	SleepMillis (int milliseconds)
static void	SleepNanos (int64_t nanoseconds)
static void	SleepUntil (const Ticks &time)
static void	YieldToSystem ()

◆ lang::Owner< Trigger & >

friend class lang::Owner< Trigger & >

friend

Definition at line 64 of file trigger.inl.

◆ threads::TCondition< Trigger >

friend struct threads::TCondition< Trigger >

friend

Definition at line 64 of file trigger.inl.

Field Details:

◆ internalThreadMode

bool alib::threadmodel::Trigger::internalThreadMode = false

protected

Denotes whether or not the trigger is currently used in internal thread mode.

Definition at line 128 of file trigger.inl.

◆ triggerList

ListMA<TriggerEntry> alib::threadmodel::Trigger::triggerList

protected

The list of registered triggered objects.

Definition at line 121 of file trigger.inl.

◆ wakeUpCondition

bool alib::threadmodel::Trigger::wakeUpCondition = false

protected

The condition requested by parent class TCondition via a call to isConditionMet.

Definition at line 125 of file trigger.inl.

Constructor(s) / Destructor Details:

◆ Trigger()

alib::threadmodel::Trigger::Trigger ( )

Constructor.

Definition at line 31 of file trigger.cpp.

◆ ~Trigger()

alib::threadmodel::Trigger::~Trigger ( )

overridevirtual

Destructor.

Definition at line 36 of file trigger.cpp.

Method Details:

◆ Add()

void alib::threadmodel::Trigger::Add	(	Triggered &	triggered,
		bool	initialWakeup = false )

Add an object to be triggered.

Parameters

triggered	The object to be triggered.
initialWakeup	If `true`, the first wakeup is scheduled right away. Defaults to `false`.

Definition at line 45 of file trigger.cpp.

◆ Do() [1/2]

void alib::threadmodel::Trigger::Do ( Ticks until )

Executes the processing of triggers for up to a given maximum time. If the internal thread is not used, this method may be called manually inside an external loop to execute triggering operations within the specified timeframe.

If the internal thread was created and is running, with debug-compilations, an ALib error will be raised.

Parameters

until Defines the future point in time until triggering is performed.

Definition at line 118 of file trigger.cpp.

◆ Do() [2/2]

void alib::threadmodel::Trigger::Do ( Ticks::Duration until )

inline

Invokes Do(Ticks) by adding the given duration to the current point in time.

Parameters

until Defines the maximum duration for which this method will execute the trigger logic.

Definition at line 158 of file trigger.inl.

◆ isConditionMet()

bool alib::threadmodel::Trigger::isConditionMet ( ) const

inlineprotectednoexcept

Implementation of the interface needed by parent TCondition.

Returns: Member wakeUpCondition

Definition at line 132 of file trigger.inl.

◆ Remove()

void alib::threadmodel::Trigger::Remove ( Triggered & triggered )

Remove a previously added triggered object.

Parameters

triggered The object to be removed from the list.

Definition at line 75 of file trigger.cpp.

◆ Run()

void alib::threadmodel::Trigger::Run ( )

overridevirtual

Implementation of the parent interface (virtual abstract).

Reimplemented from alib::threads::Thread.

Definition at line 96 of file trigger.cpp.

◆ Start()

void alib::threads::Thread::Start ( )

virtual

Starts the execution of the thread. Method Run is invoked by the new system thread, which - if not overwritten - invokes the method virtual void Run() =0. Of course, this method immediately returns, and after invocation, method IsAlive will usually return true (unless the executed thread is not finished already).

Reimplemented from alib::threads::Thread.

Definition at line 271 of file thread.cpp.

◆ Stop()

void alib::threadmodel::Trigger::Stop ( )

virtual

Stops the trigger thread and joins it.

Definition at line 108 of file trigger.cpp.

The documentation for this class was generated from the following files:
